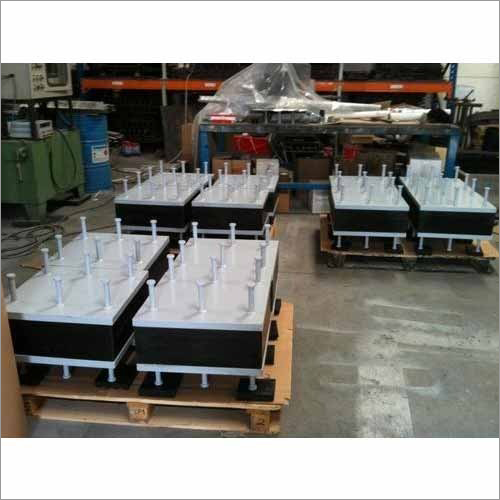

Bridge Bearings
We provide a wide range of high-quality bridge bearings designed to accommodate inspection, maintenance, and replacement needs while ensuring structural integrity.
From Spherical Bearings to Pot PTGE Bearings, our solutions are engineered to withstand high loads and severe environmental conditions.
Spherical Bearings

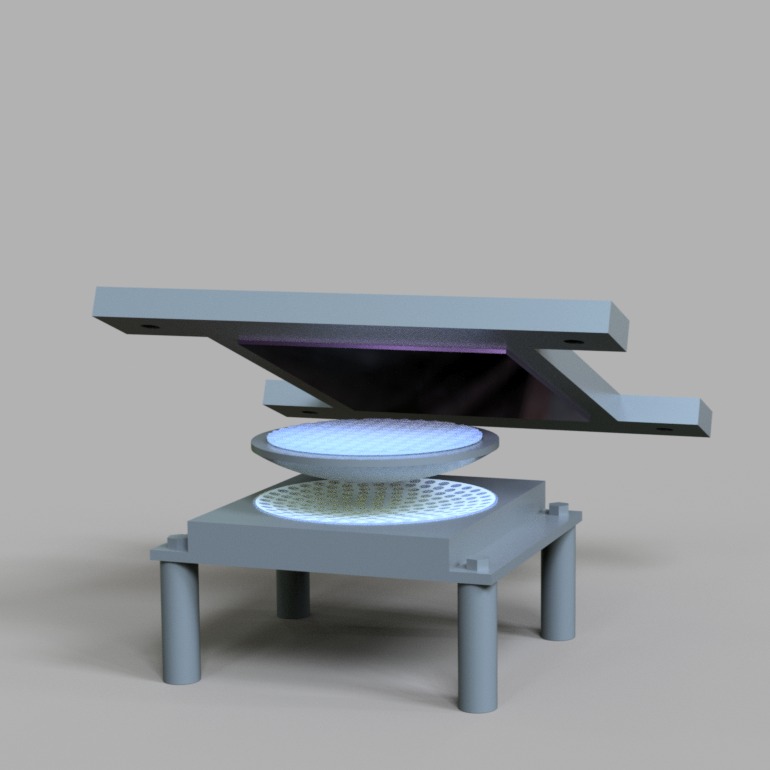

Free Sliding Spherical Bearing
This spherical bearing comes with movable plate with sliding interface to the dimpled PTFE(with silicon grease) surrounded by the seal to prevent from debris and dust.

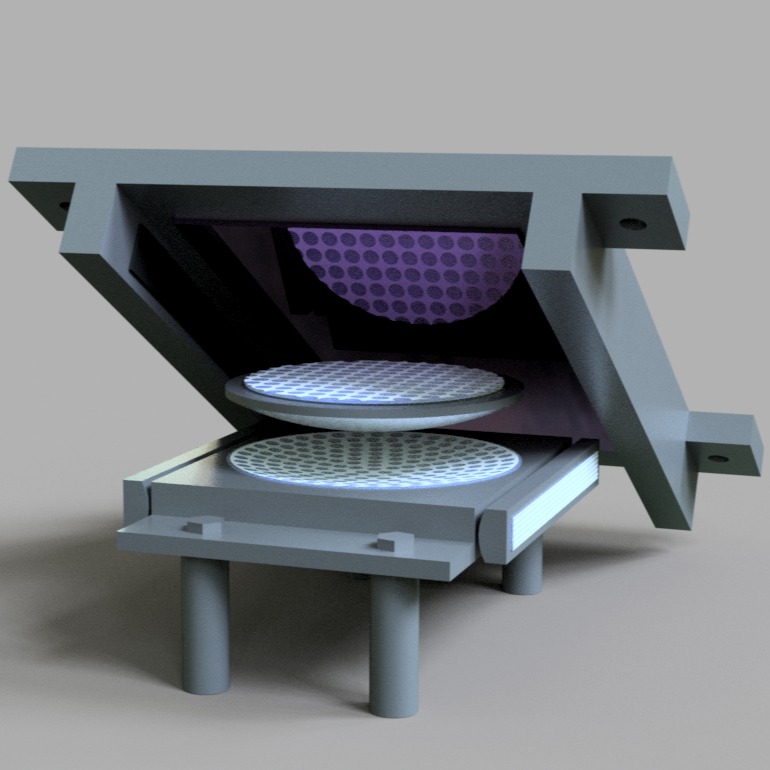

Guided Spherical Bearing
This bearing will only allows the movement in one direction in longitudinal or transverse axis. Usually, the movement is restrained by guide bar(restrained steel component) to allow movement along the unrestrained axis

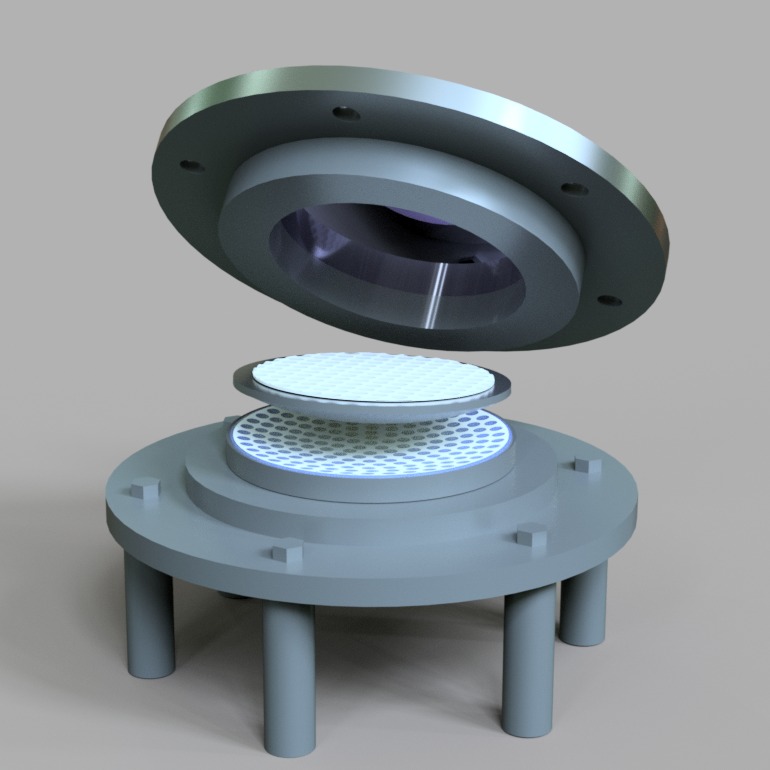

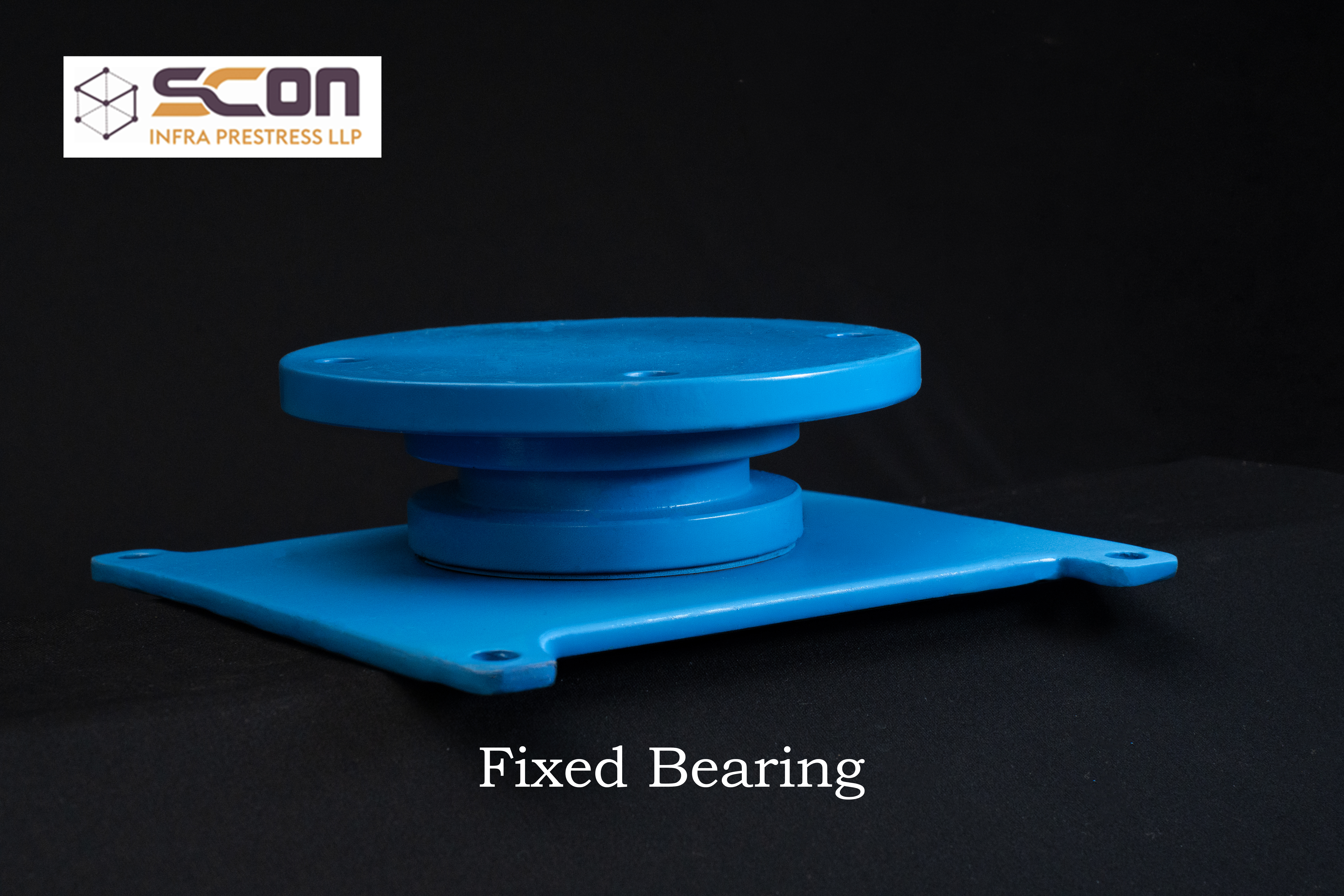

Fixed Spherical Bearing
This Spherical bearing restricts movement in horizontal direction with restraining ring and also transmit the horizontal forces in all the direction to the substructure

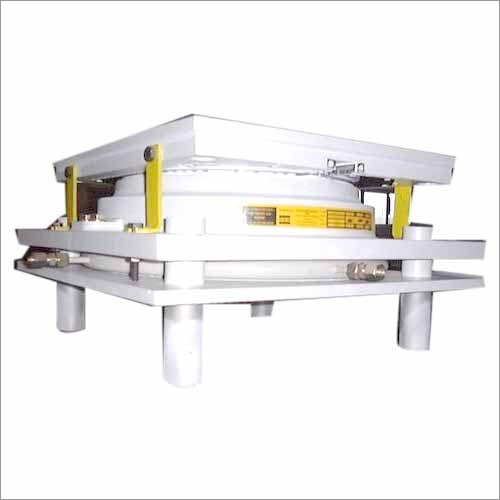

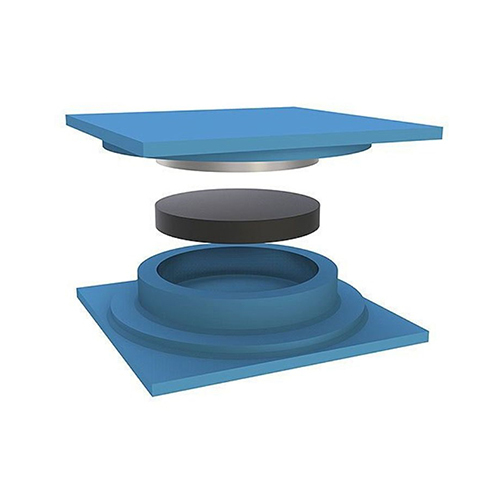

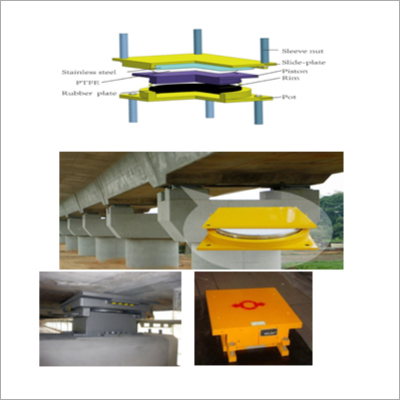

Pot PTFE Bearings

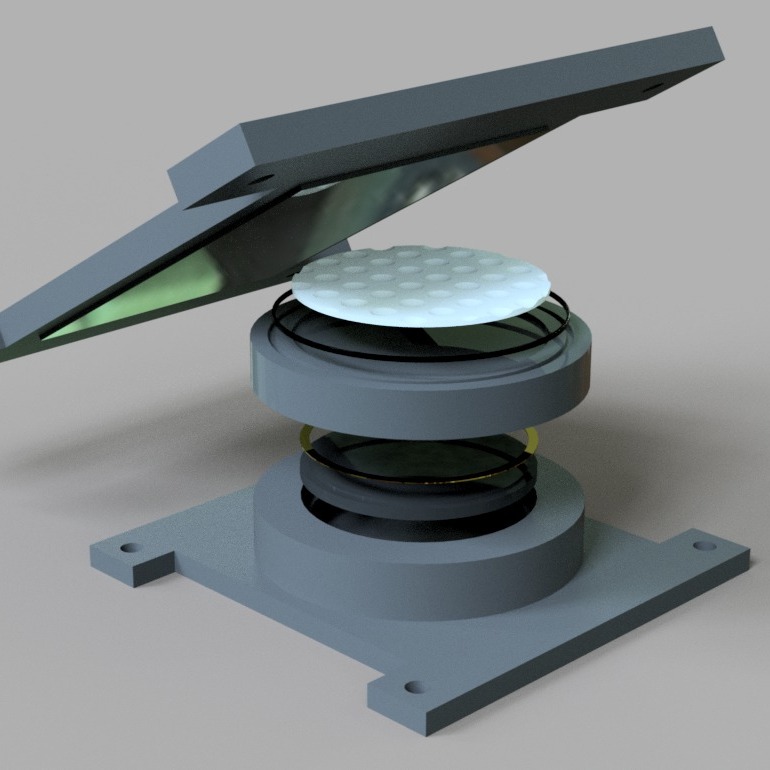

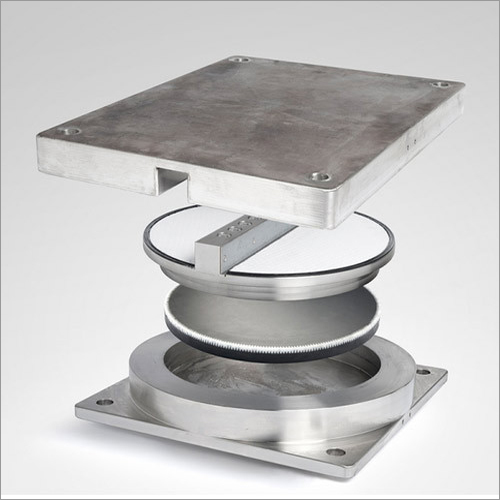

Free Sliding Pot PTFE
A completely encased natural rubber or elastomer or neoprene pad is positioned in a monolithic steel pot. Under high pressure the pad behaves like a liquid. The elasticity of the rubber allows tilting movement (rotation) of the piston in horizontal axis.

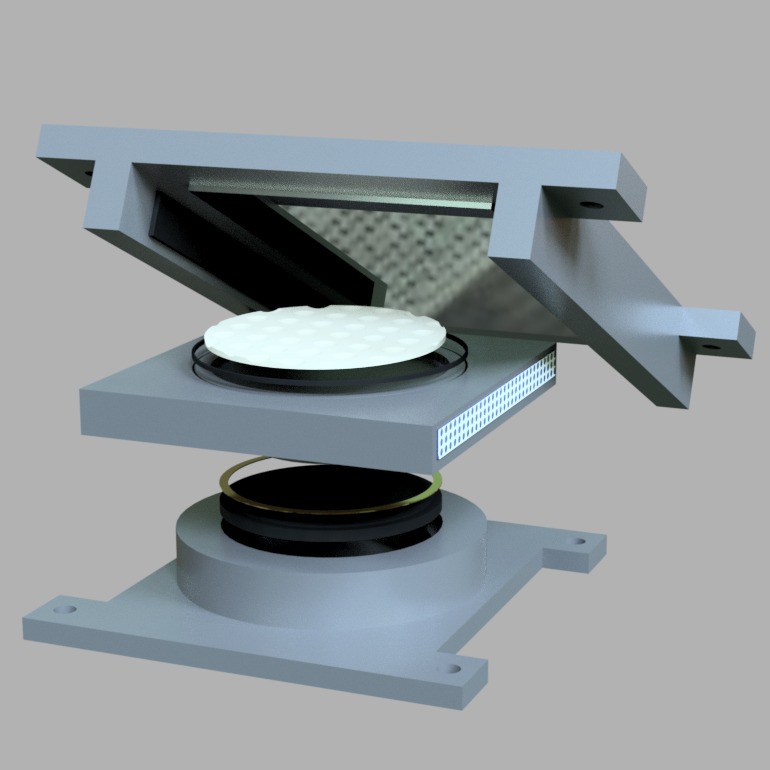

Guided Pot PTFE
Identical to the above Free Float Pot PTFE Bearing, the steel plate is casting with a pair of Guide bars both the surfaces are welded with stainless steel with a virgin dimpled PTFE surrounded by a seal allows good friction and preventing dust enters into it to limit the movement in one direction perpendicular to the horizontal force acting on it.

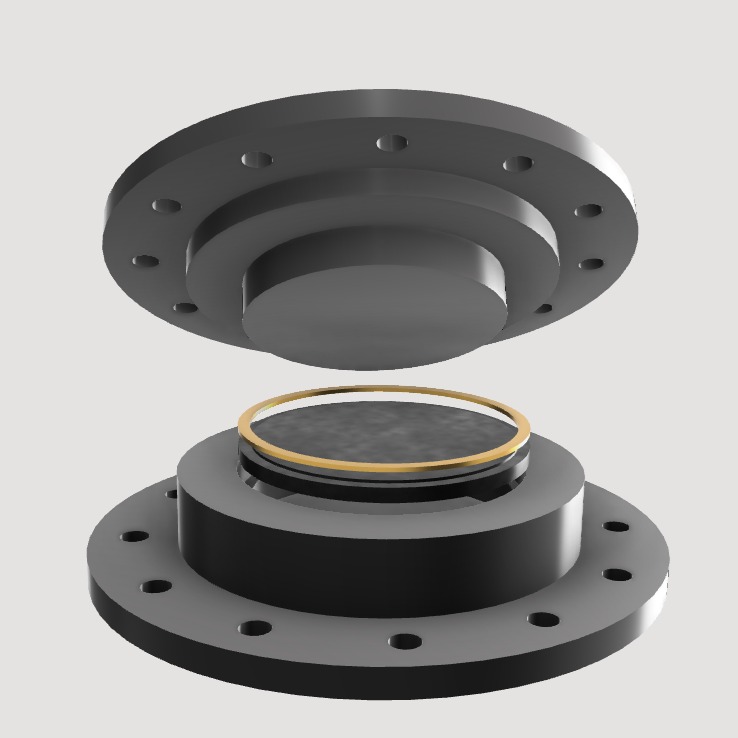

Fixed Pot PTFE Bearing
These bearings consist of a pot / piston assembly within which an elastomer disc is encapsulated and fitted with an anti-extrusion sealing ring. Under load, this encapsulated elastomer disc acts in a similar manner to an uncompressed confined fluid, enabling the pot and piston to rotate relative to each other. SIBB’s enable rotation in any direction while at the same time the structure is constrained horizontally.
Elastomeric Bearings

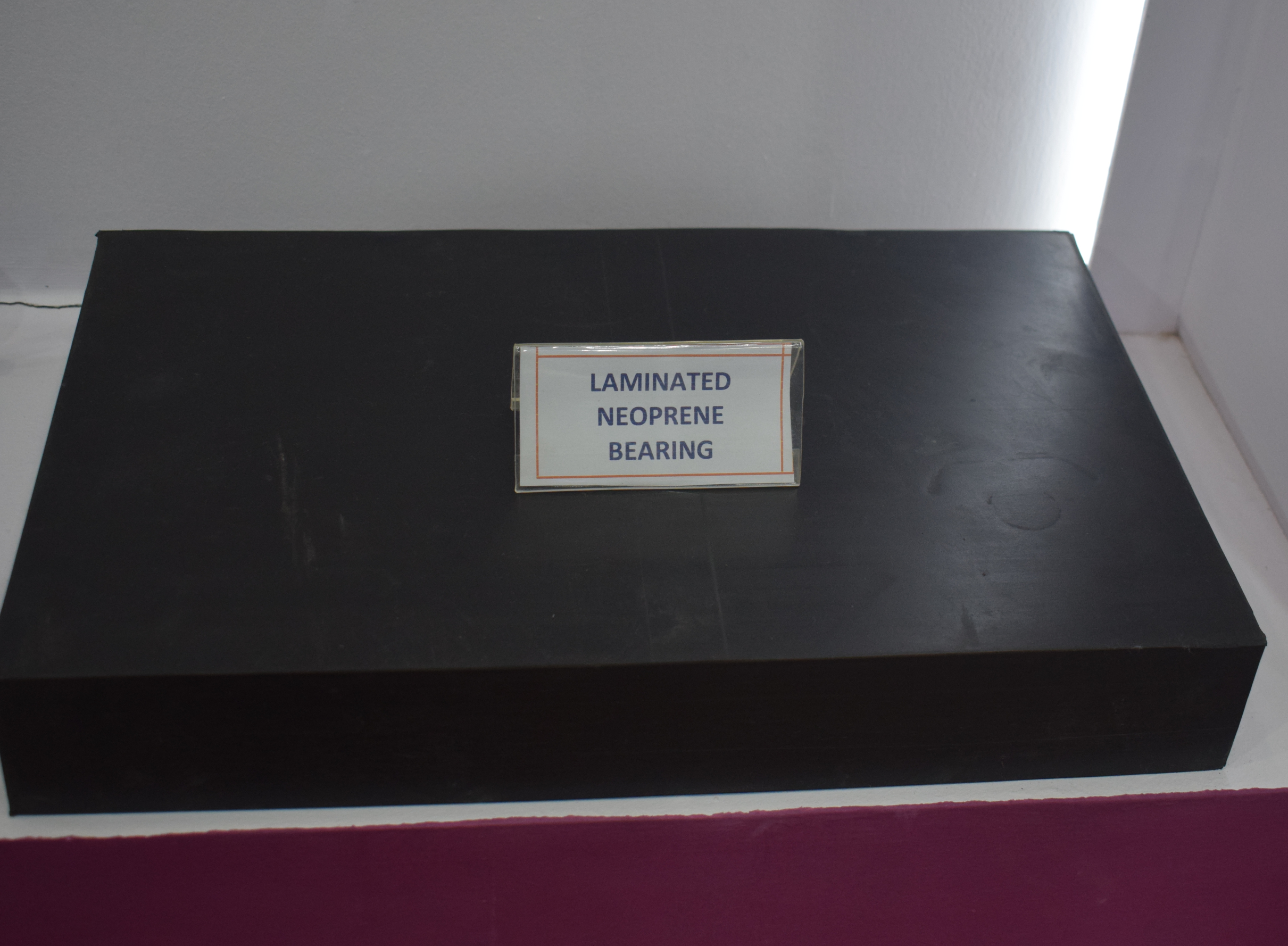

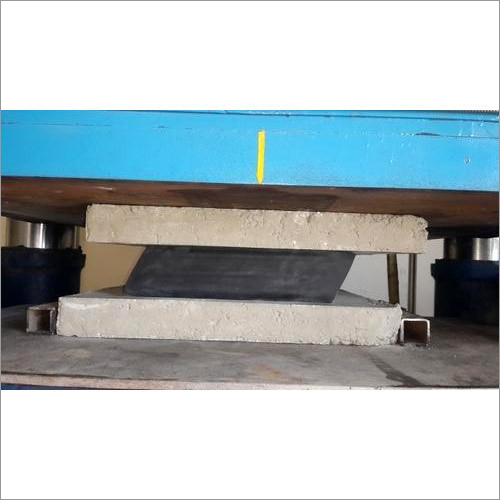

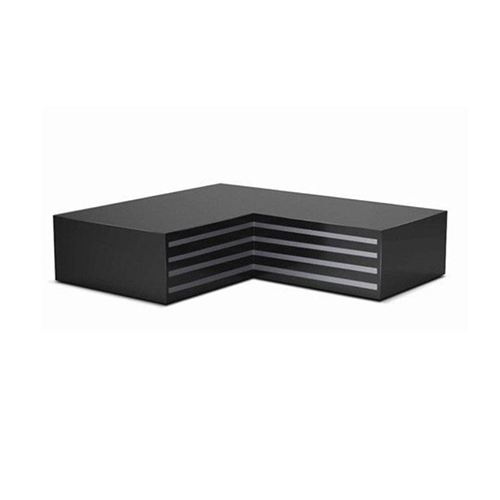

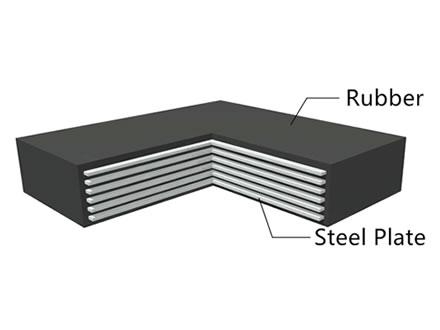

Elastomeric Bearing
Elastomer is a macro-molecular material that regains its shape and initial dimensions approximately after being submitted to significant deformation under the influence of a low stress variation.
