Bearings .
Product Description

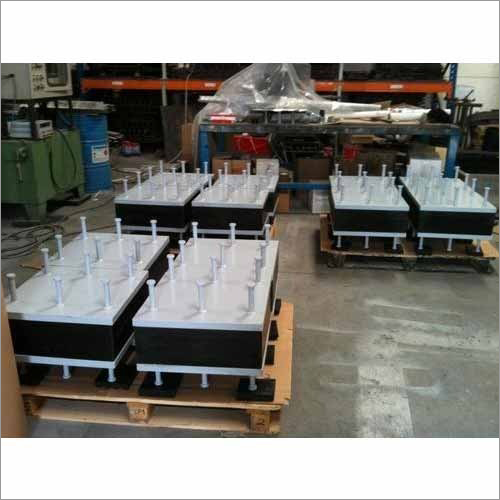

Damping rubber made bridge Bearings have been developed as per EN 15129 standards. Usually, damping co-efficiency of such products ranges between 15% to 30%. Approved by SIO, these are used for protecting bridge structure against earthquake. Operating temperature of these bridge Bearings ranges between -45degree C to 60 degree C. Advanced design of these products extends longevity of concrete structures by improving their stress bearing capacity. Due to their better horizontal force and horizontal displacement enduring performance, these play significant role in avoiding seismic effect. Precision and Durability Manufactured with a hardness of HRC 60-64, our bearings deliver enduring performance
Specifications
| Lubrication Type | Other, Grease/Oil |
| Cage Material | Pressed Steel |
| Number Of Rows | Single Row |
| Retainer | Steel |
| Thickness | 14 mm |
| Bore Size | 20 mm |
| Material | Chrome steel |
| Limiting Speed | 15000 RPM (Grease), 18000 RPM (Oil) |
| Inside Diameter | 20 mm |
| Load Capacity | Dynamic 19.3 kN, Static 10.5 kN |
| Bearing Type | Ball Bearing |
| Structure | Deep Groove |
| Precision Rating | P0, P6, P5, P4 |
| Seals Type | Open / Sealed |
| Outside Diameter | 47 mm |
| Minimum Order Quantity | 1000 Meters |
| Delivery Time | 1 Months |
